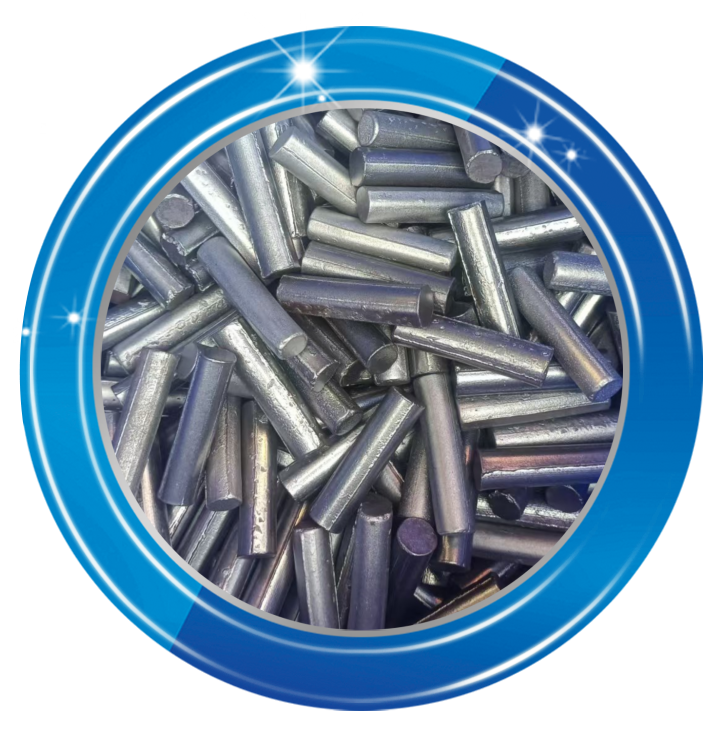

Steel bonded ferro-tic insert titanium carbide cermet rods
Steel bonded ferro-tic insert titanium carbide cermet rods, which contains a hard phase TiC and a bonding phase high manganese steel, wherein the bonding phase contains, by weight, Ni, Mn, and the balance elements. Hardness HRC 60-75, denstiy 5.6 -6.2 g/cm3.
Steel bonded ferro-tic insert titanium carbide cermet rods, which contains a hard phase TiC and a bonding phase high manganese steel, wherein the bonding phase contains, by weight, Ni, Mn, and the balance elements. Hardness HRC 60-75, denstiy 5.6 -6.2 g/cm3.
Advantage:
Why WISE Technology Steel bonded ferro-tic insert titanium carbide cermet rods is better:
1.Core technology：solid solution strengthening technology,more wear-resistant,more impact-resistant;
2.Our company has 15 years of production experience；We have been supplying Metso,the world's largest miner manufacturer, for 15 years with zero customer complaints.
3.Use high purity raw material : Fe,Mn,Ni,and home made Titanium carbide powder,Strictly control in raw material ensure the high quality of Steel bonded ferro-tic insert titanium carbide cermet rods;
4.Unique additive application ensure alloy grain densification;
5.Unique sintering process ensure stable quality.
 |  |

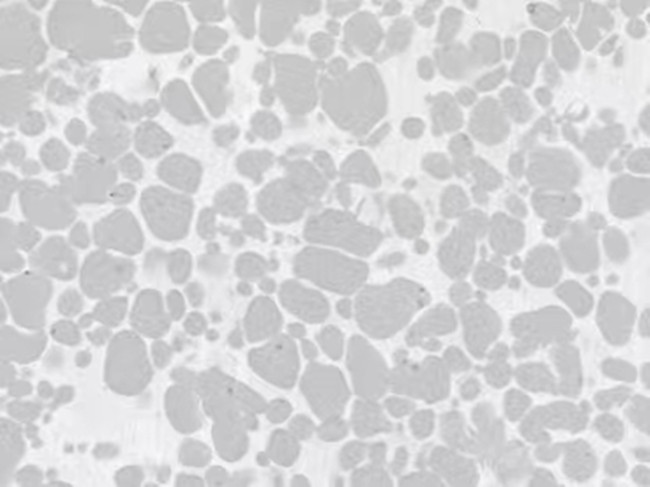

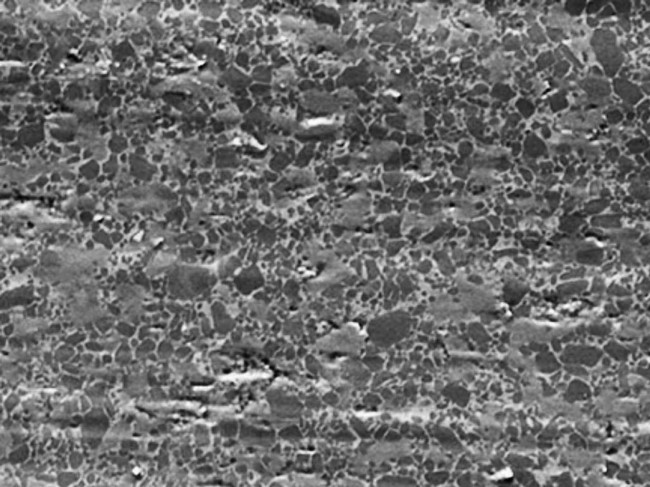

Sintered product metallography Post-wear metallography
SPECIFICATION：
PHYSICAL
Grade | TRS (ISO3327) | Hardness (ISO3878) | Density (ISO3369) | Average Grain Size | Porosities |
TM52X | 1800 | 82-83HRA | 6.0-6.3g/cm3 | 2.0 um | A02B00C00 |
TM50X | 2500 | 84-85HRA | 6.2-6.5g/cm3 | 2.0 um | A02B00C00 |
TM40X | 1600 | 89-90HRA | 5.7-5.9g/cm3 | 2.0 um | A02B00C00 |
TM25X | 1300 | 94-95HRA | 5.5-5.7g/cm3 | 2.0 um | A02B00C00 |
 |  |
CHEMICAL
Grade | TiC(%) | Fe+Mn(%) | Ni+Mo(%) | Ta+Nb(%) | Other(%) |
TM52X | 46-48 | 46-48 | 2-5 | 1-2 | 2-5 |
TM50X | 48-50 | 43-45 | 2-5 | 2-5 | 2-5 |
TM40X | 58-60 | 28-30 | 2-5 | 2-5 | 2-5 |
TM25X | 70-75 | 13-15 | 2-5 | 2-5 | 2-5 |
Product application:

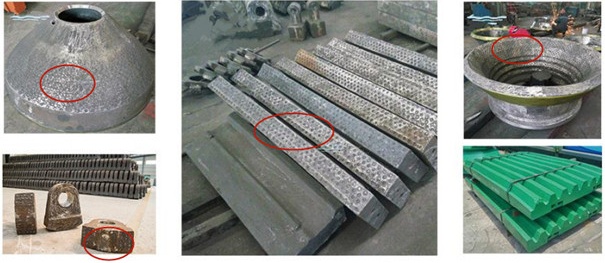

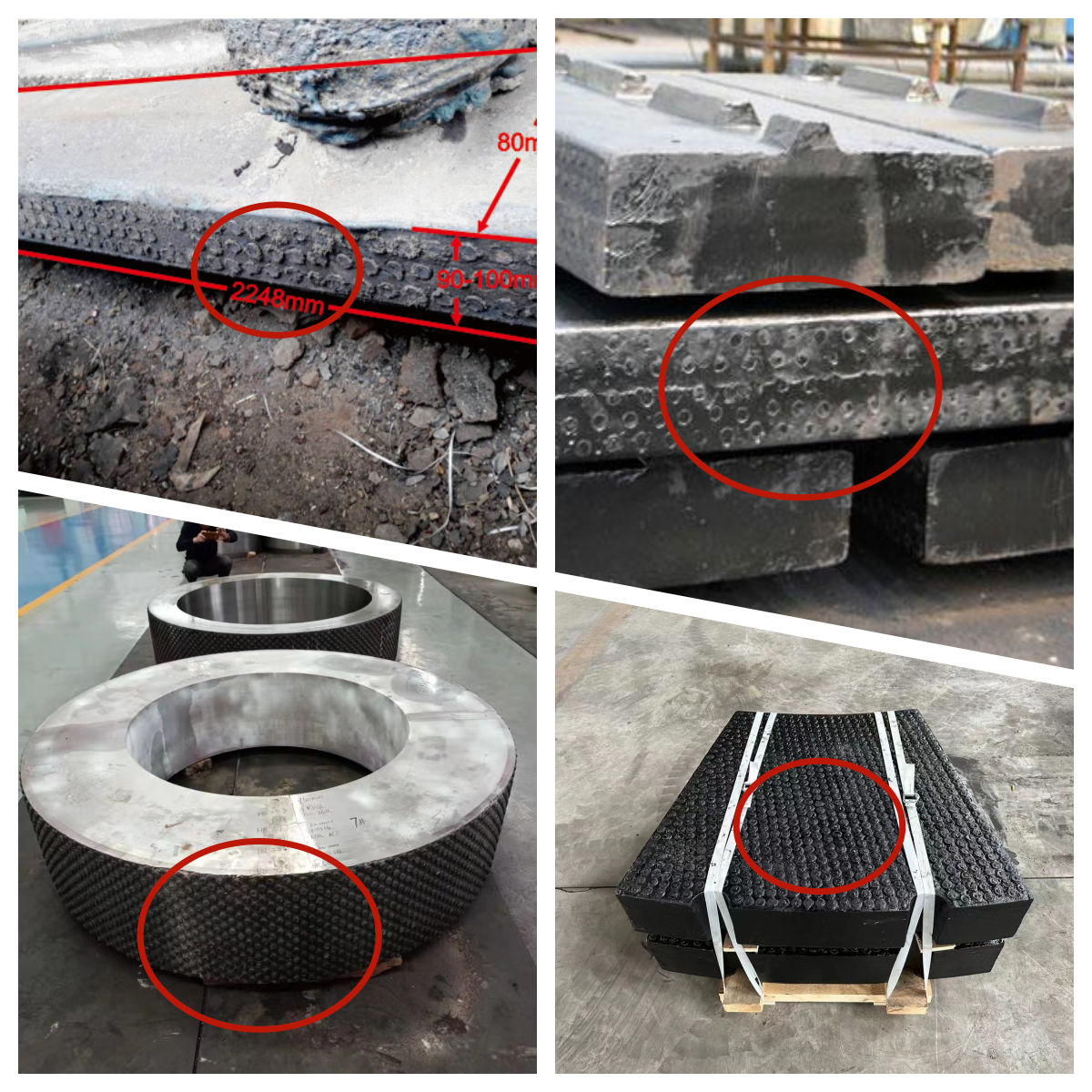

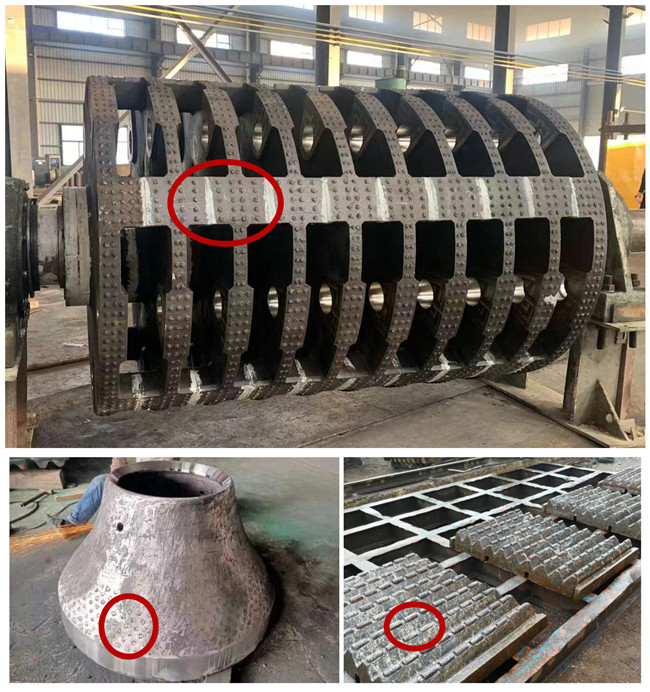

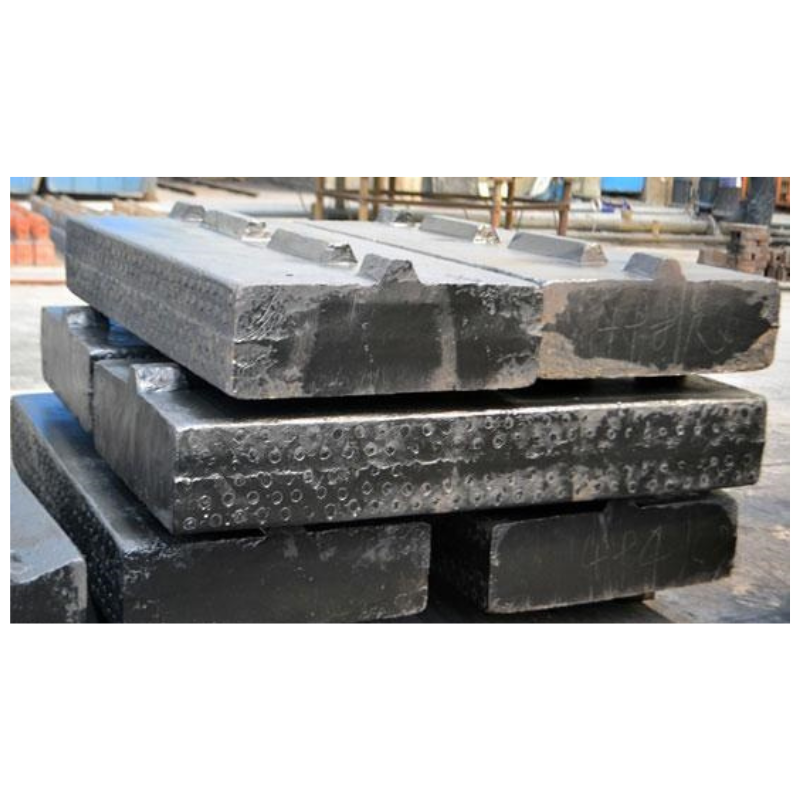

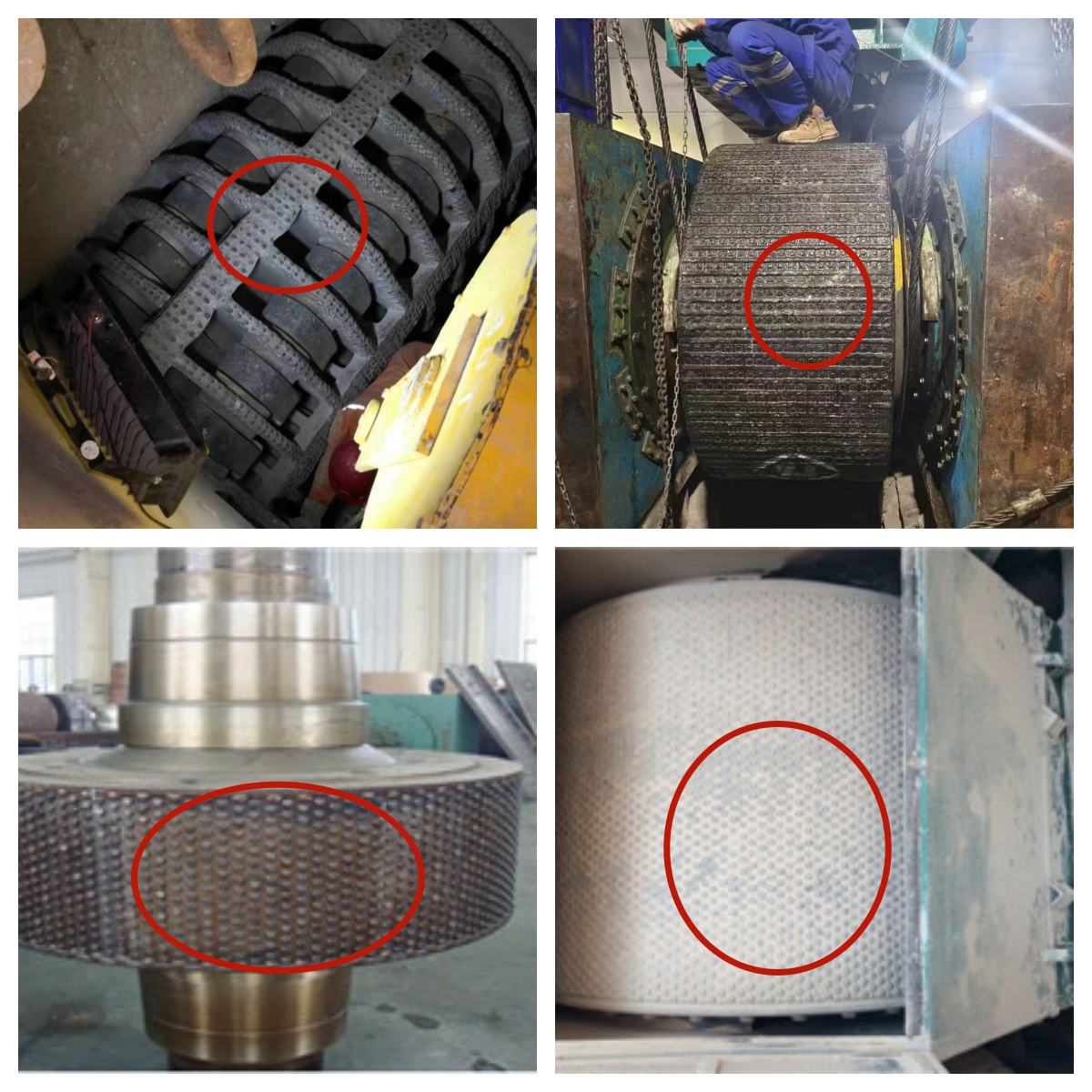

The service life of the hammer crusher hammer head,cone crusher crushing wall, rolling wall, lining plate,jaw crusher tooth plate,tooth plate,impact crusher plate, ball mill liner plate,vertical grinding roller made of our Steel bonded ferro-tic insert titanium carbide cermet rods can be increased by 2-3 times,and the cost can be greatly saved for customers.
 |  |
 |  |

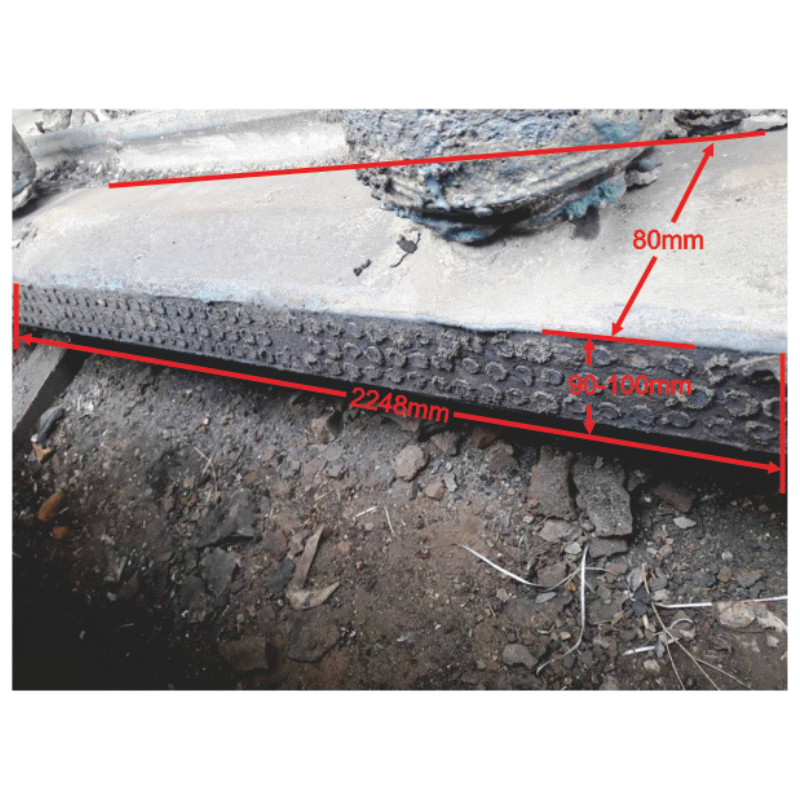

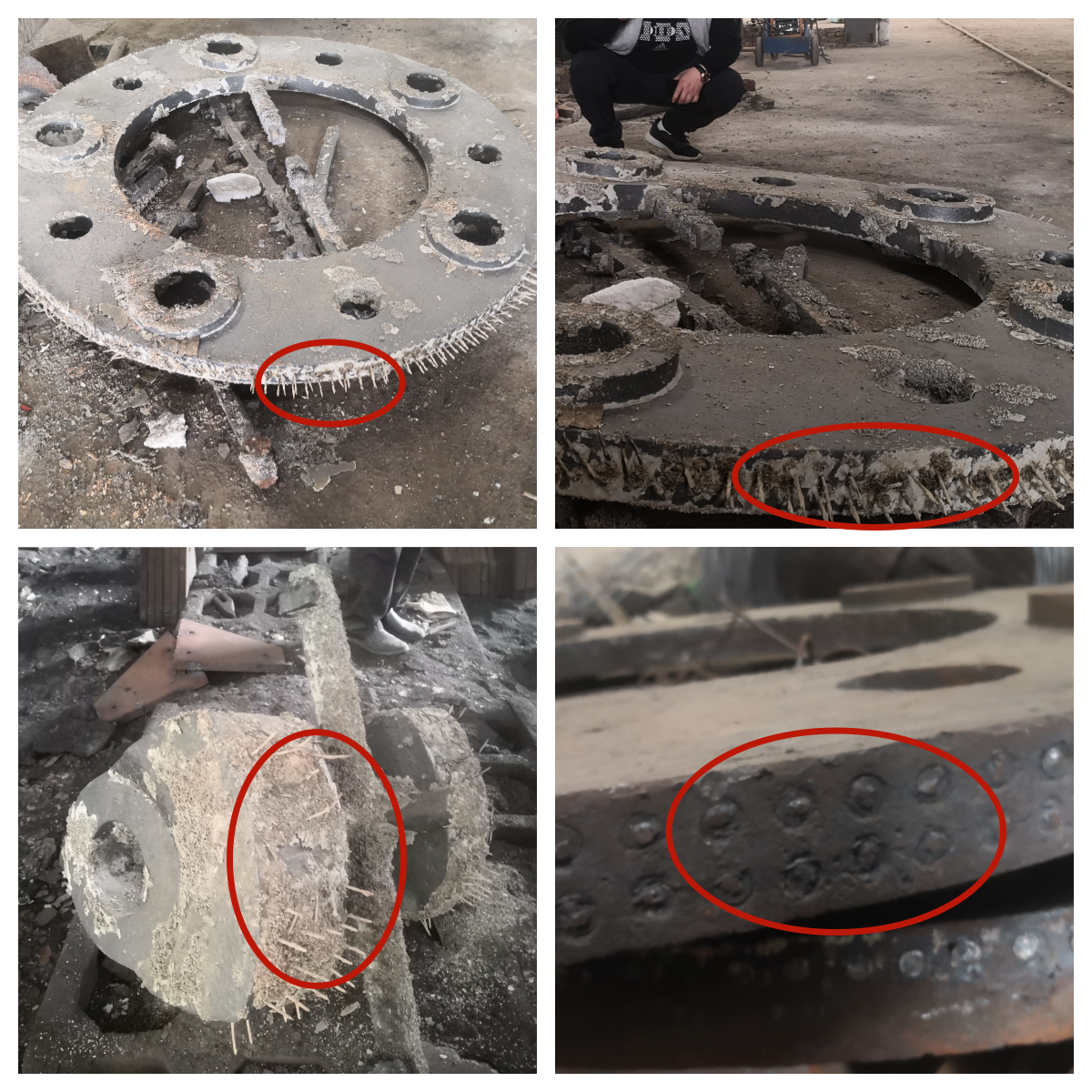

CASES:
 |  |
 |  |
 |  |
 |  |

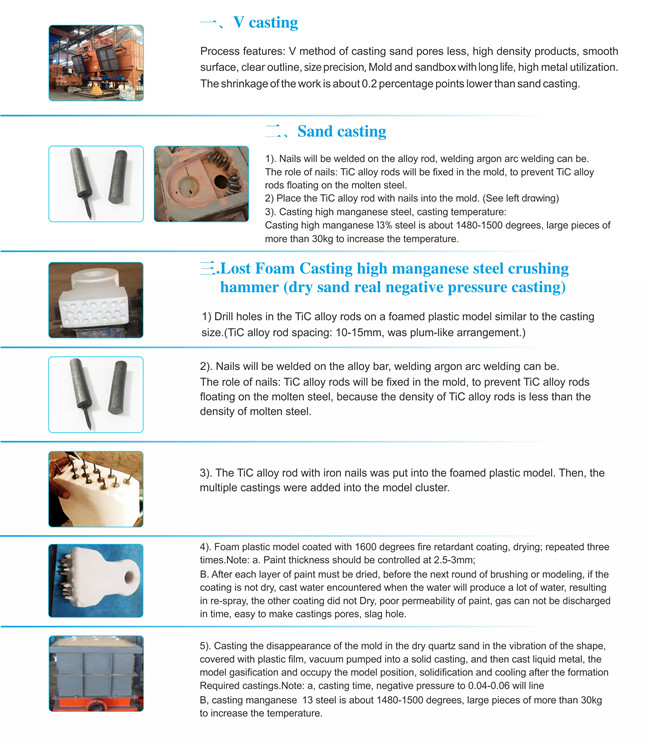

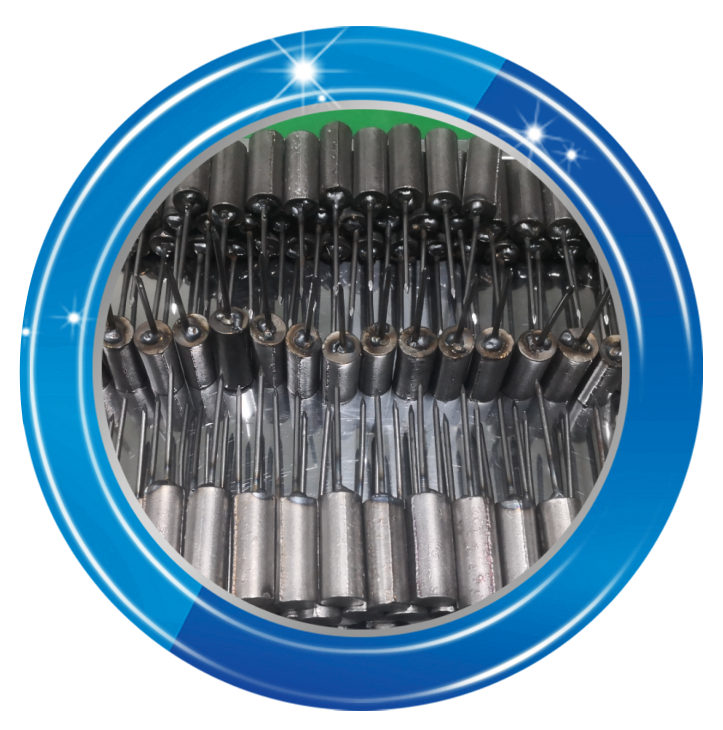

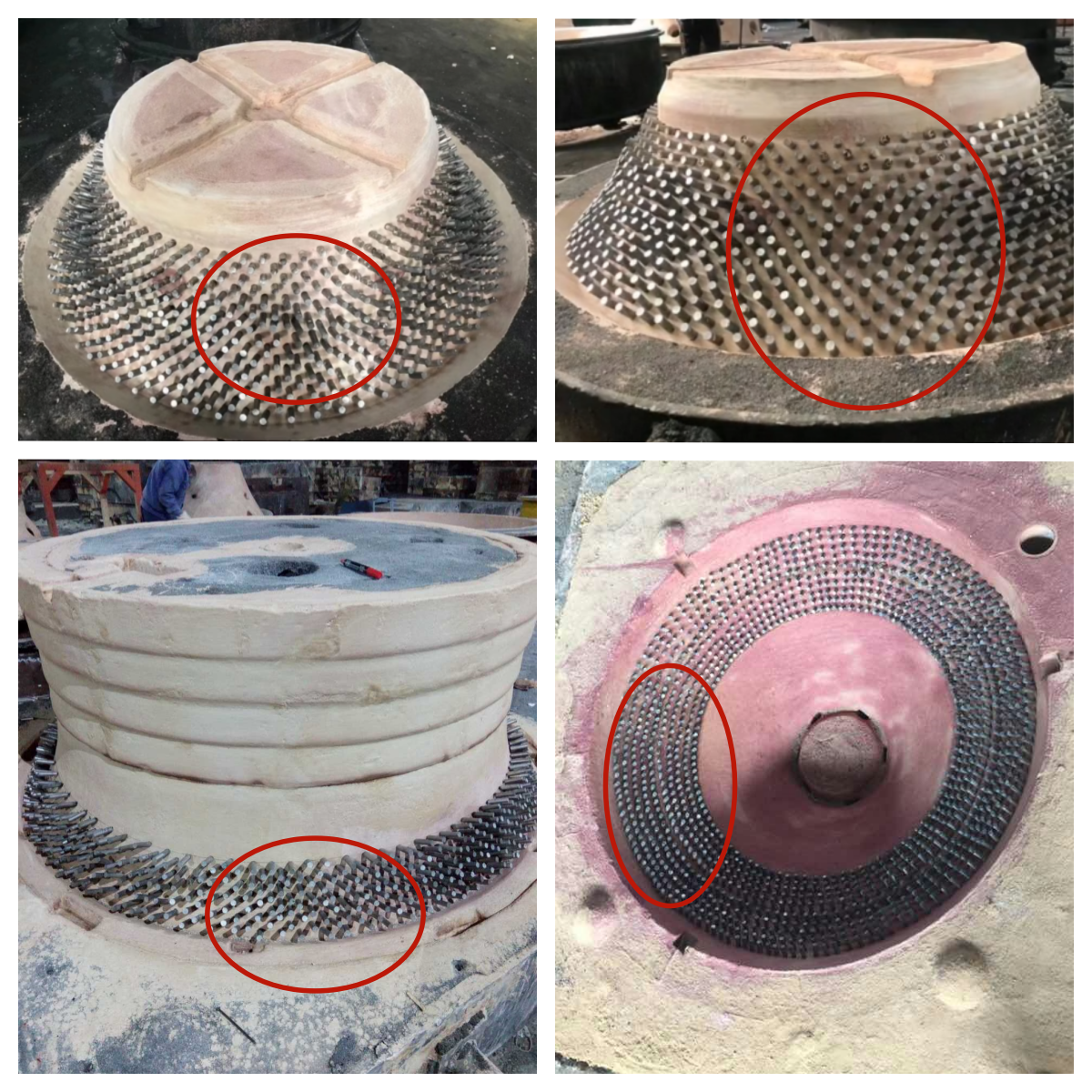

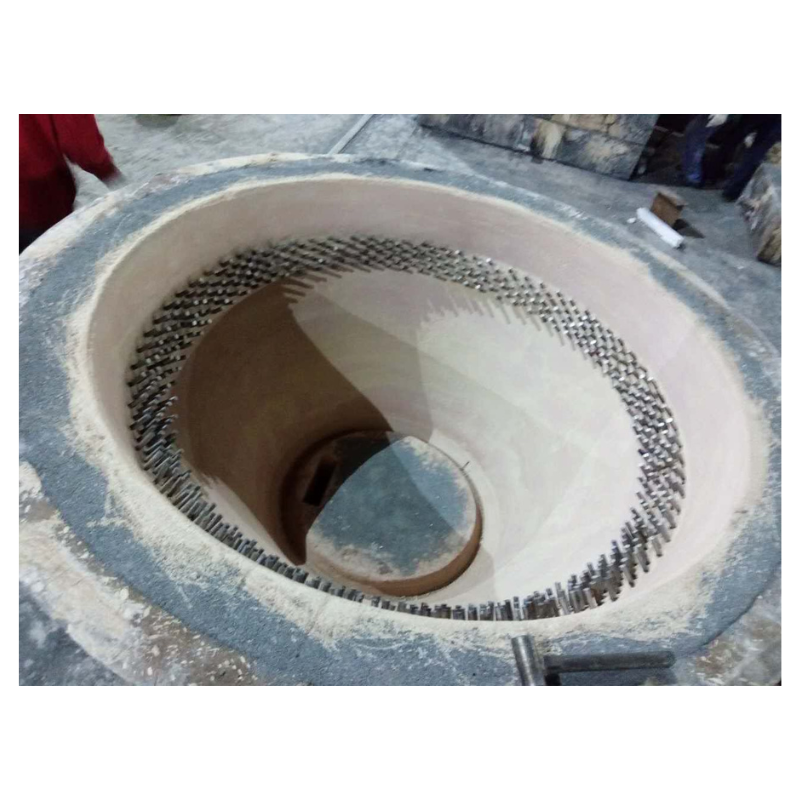

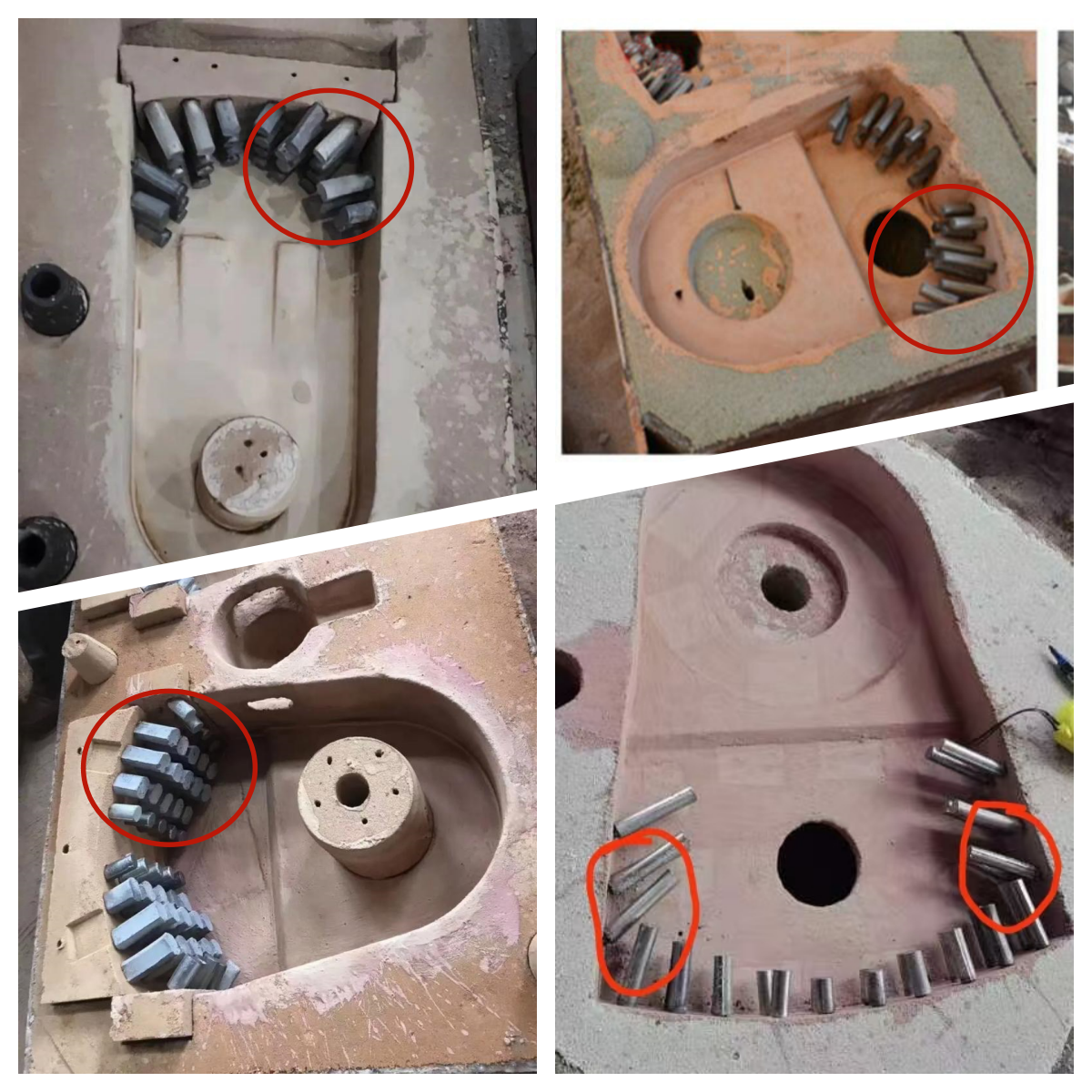

Product using method:
 |  |

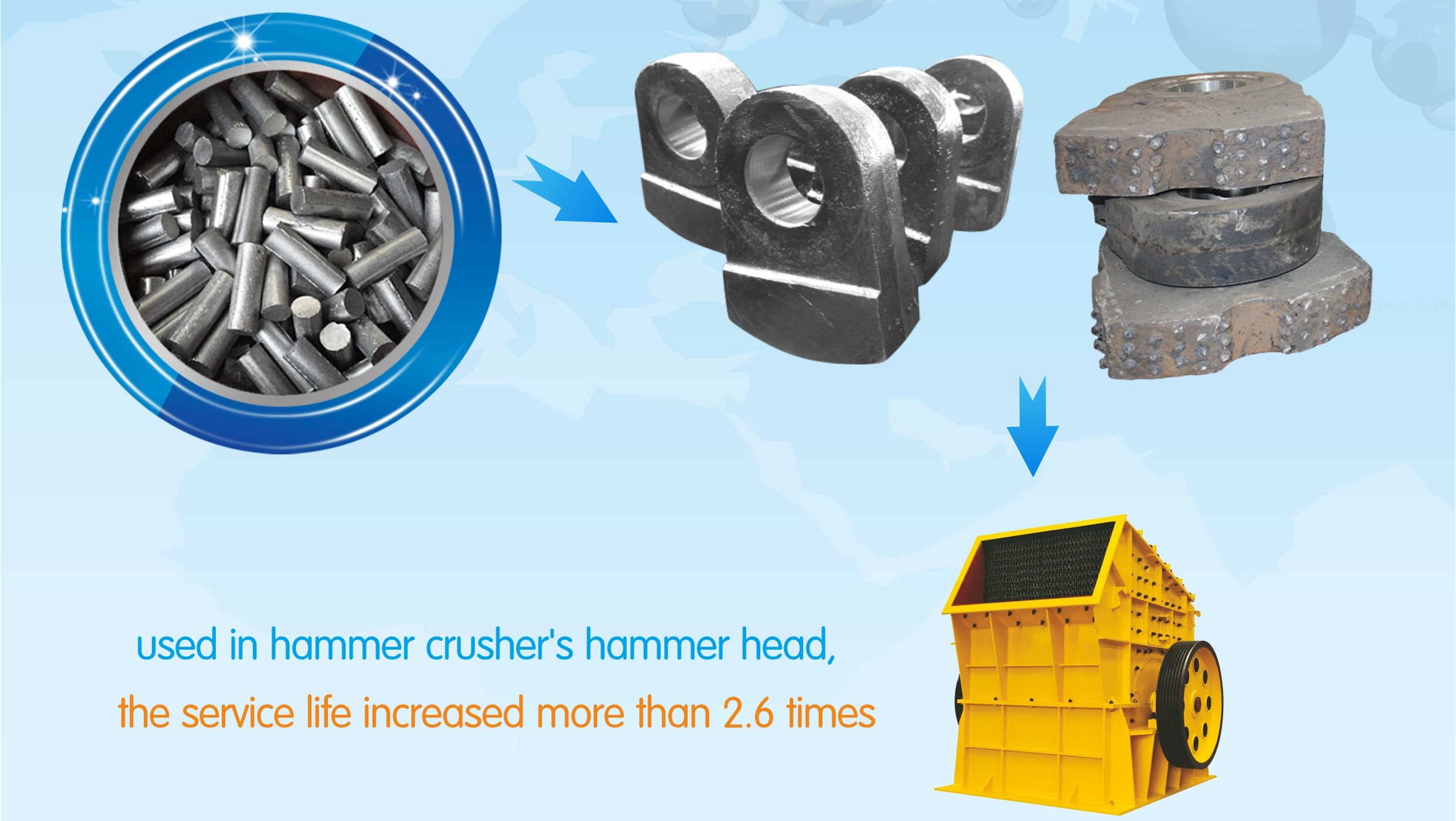

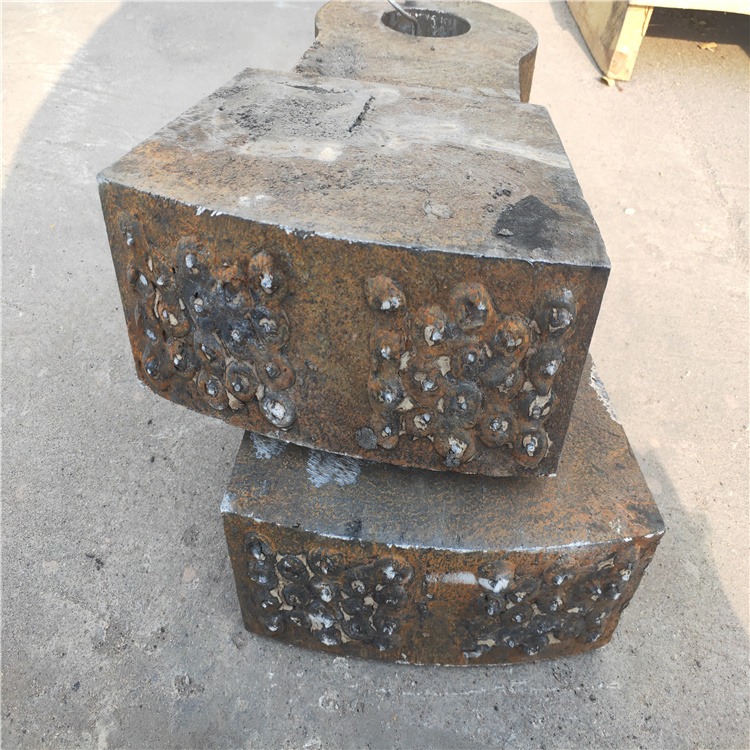

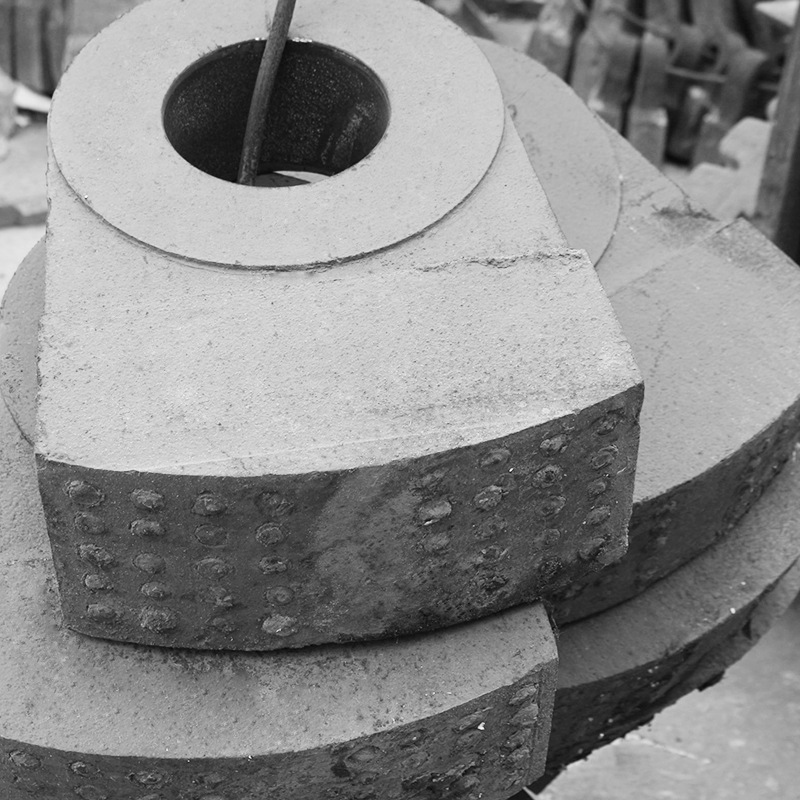

Product Applications 1：

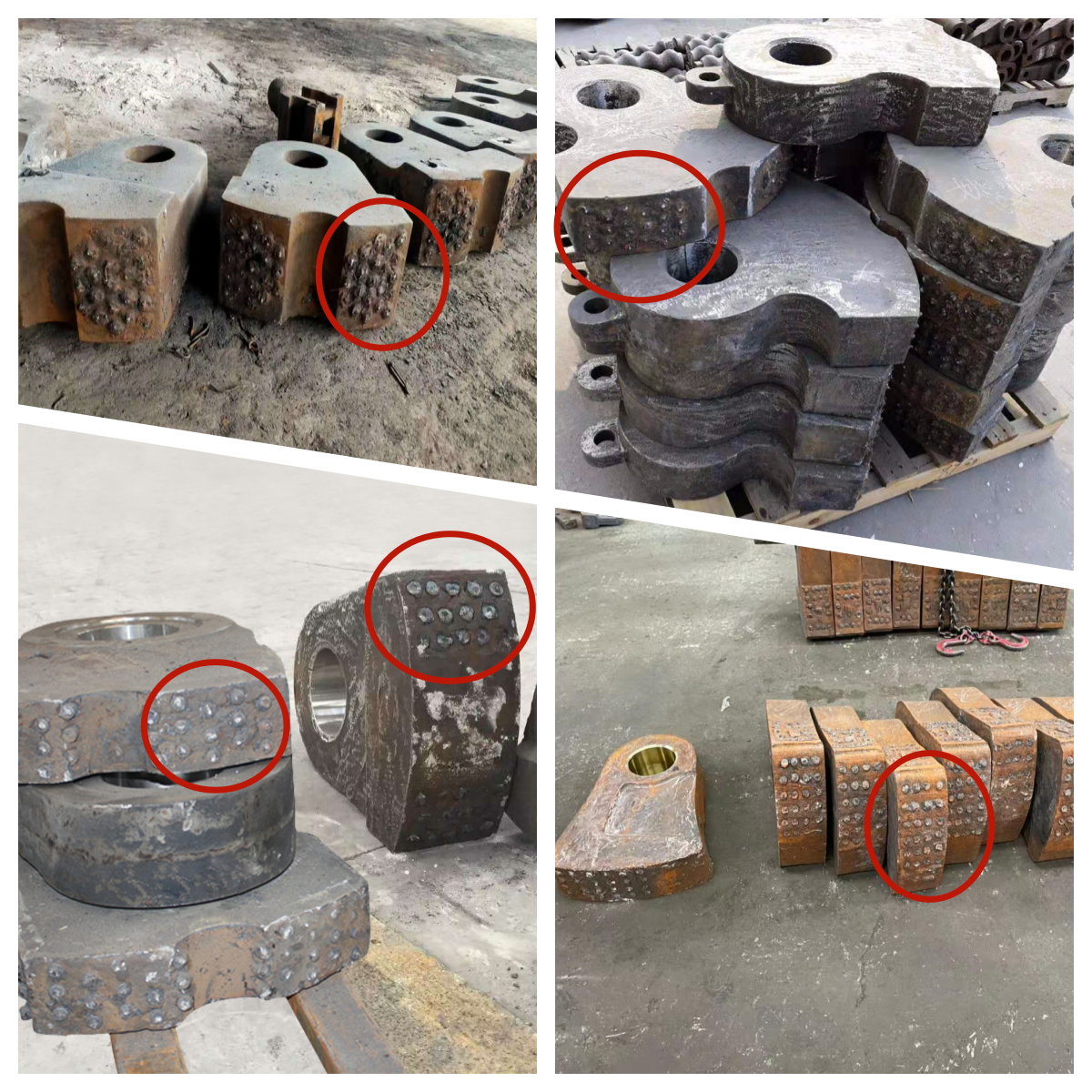

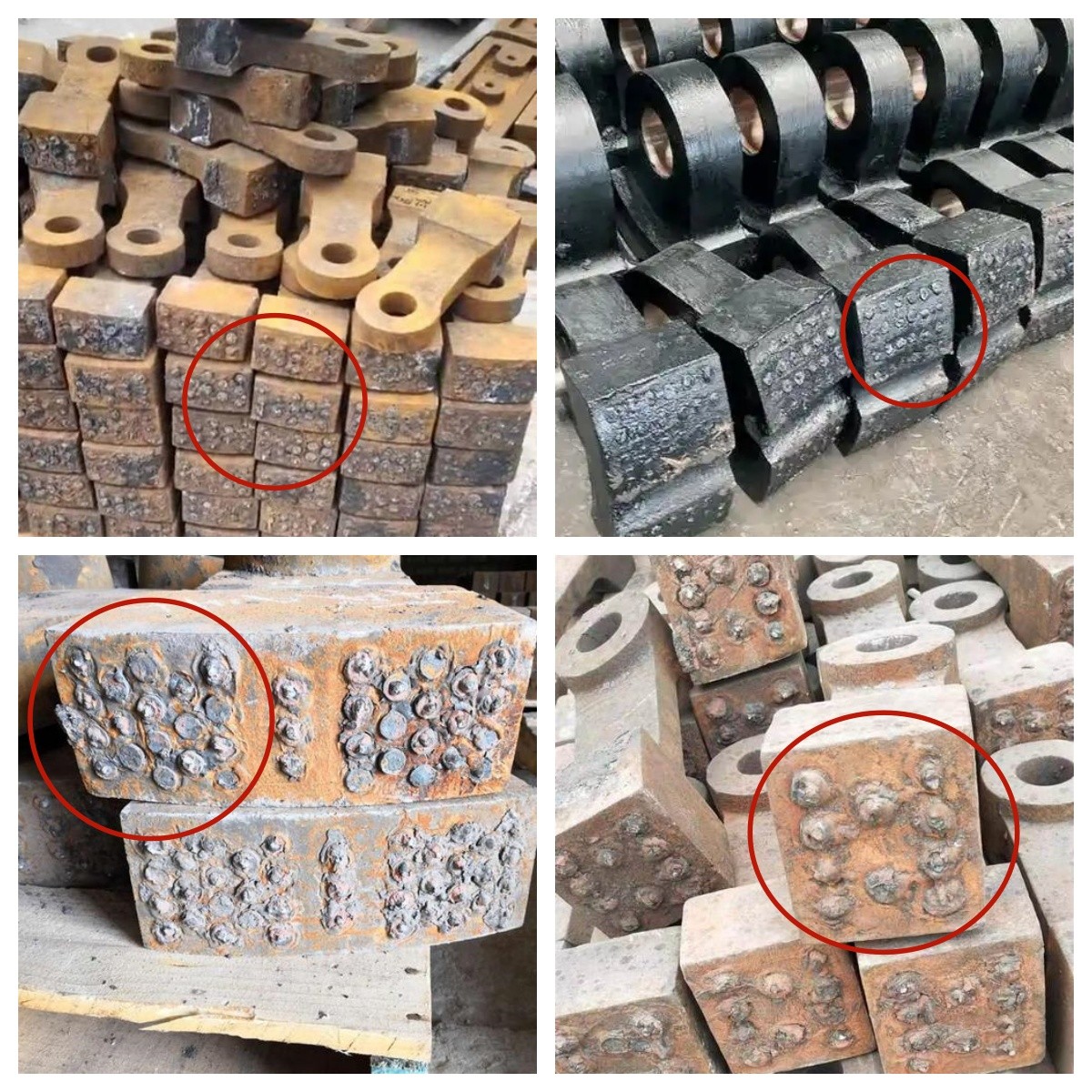

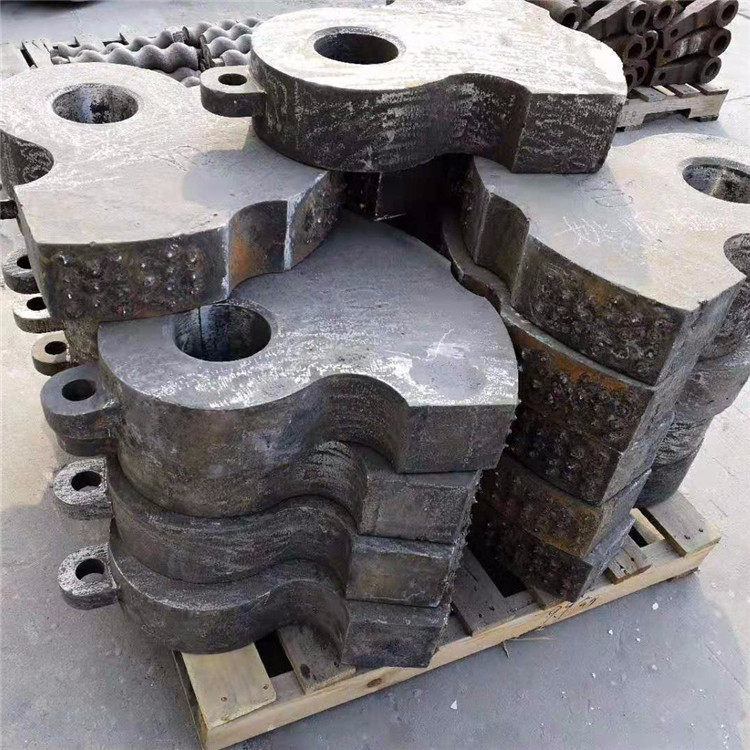

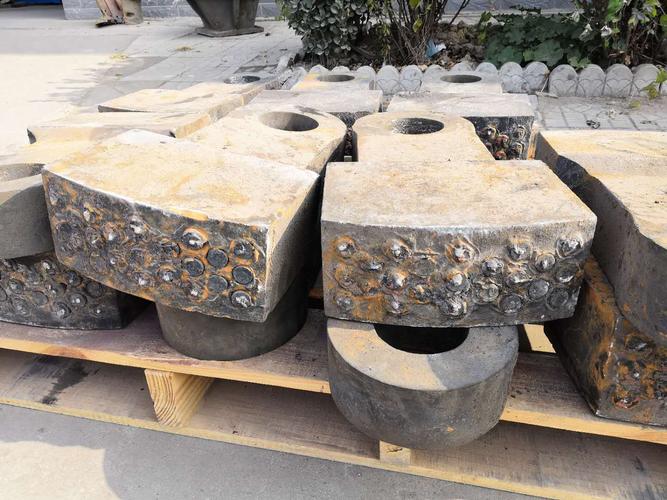

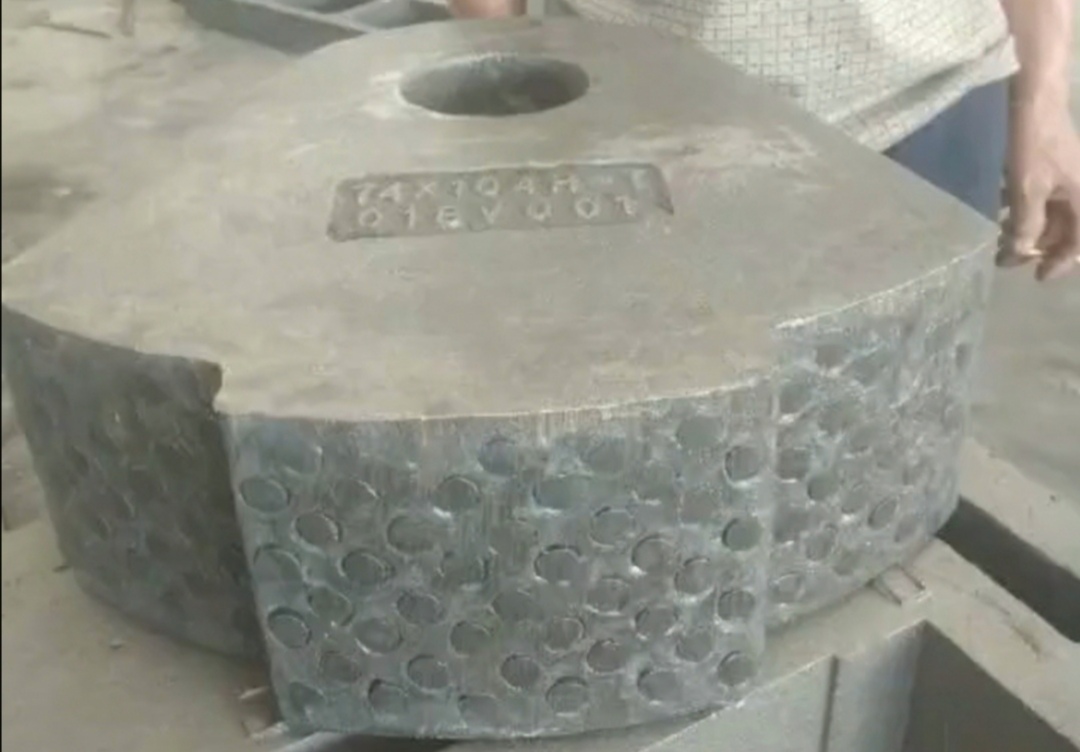

Steel bonded ferro-tic insert titanium carbide cermet rods,used in hammer crusher's hammer head, the service life increased more than 2.6 times.
 |   |
 |  |

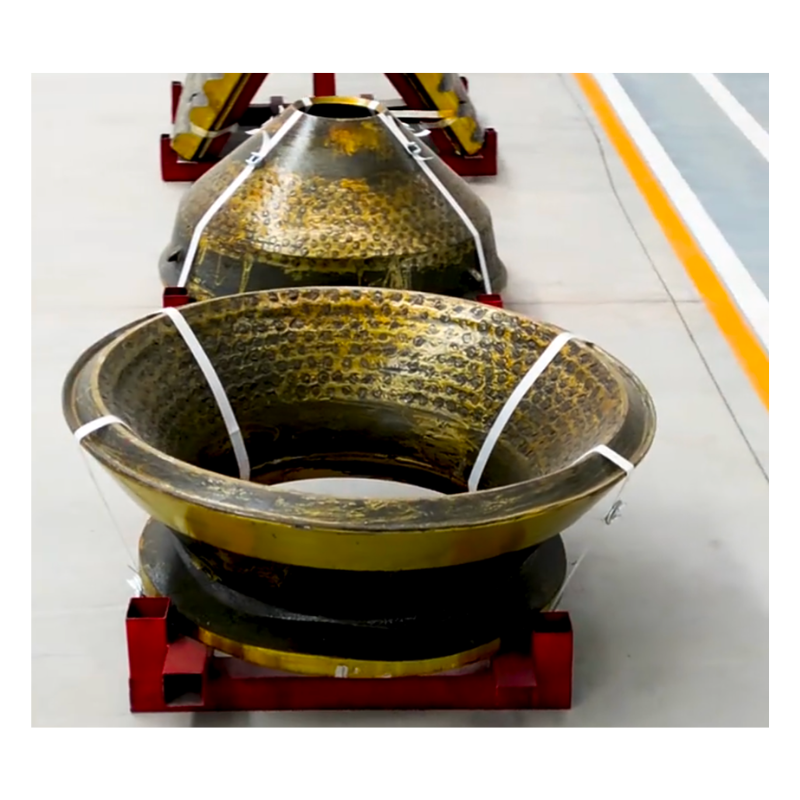

Product Applications 2：

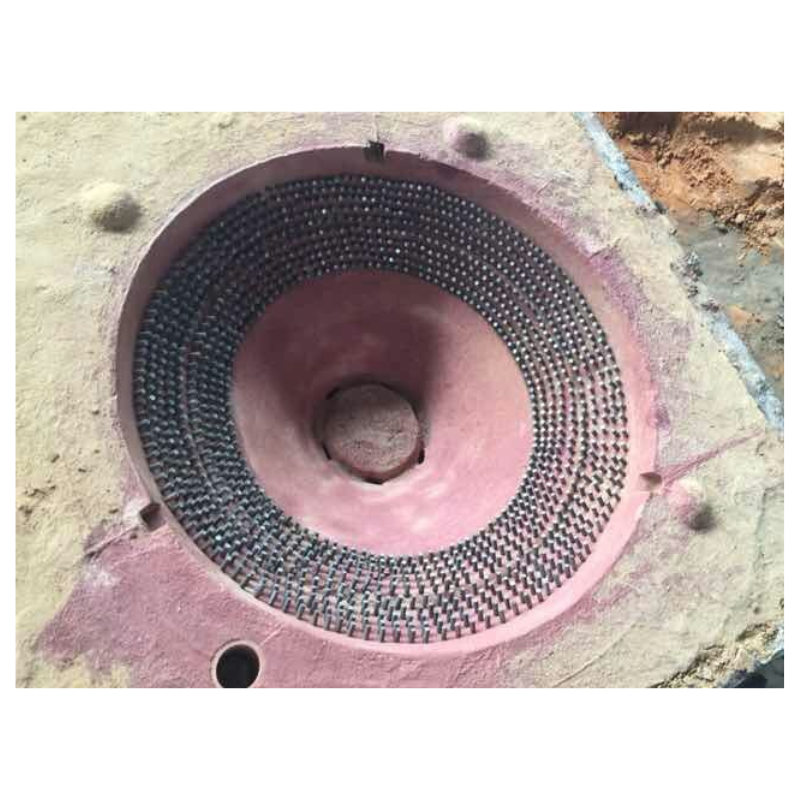

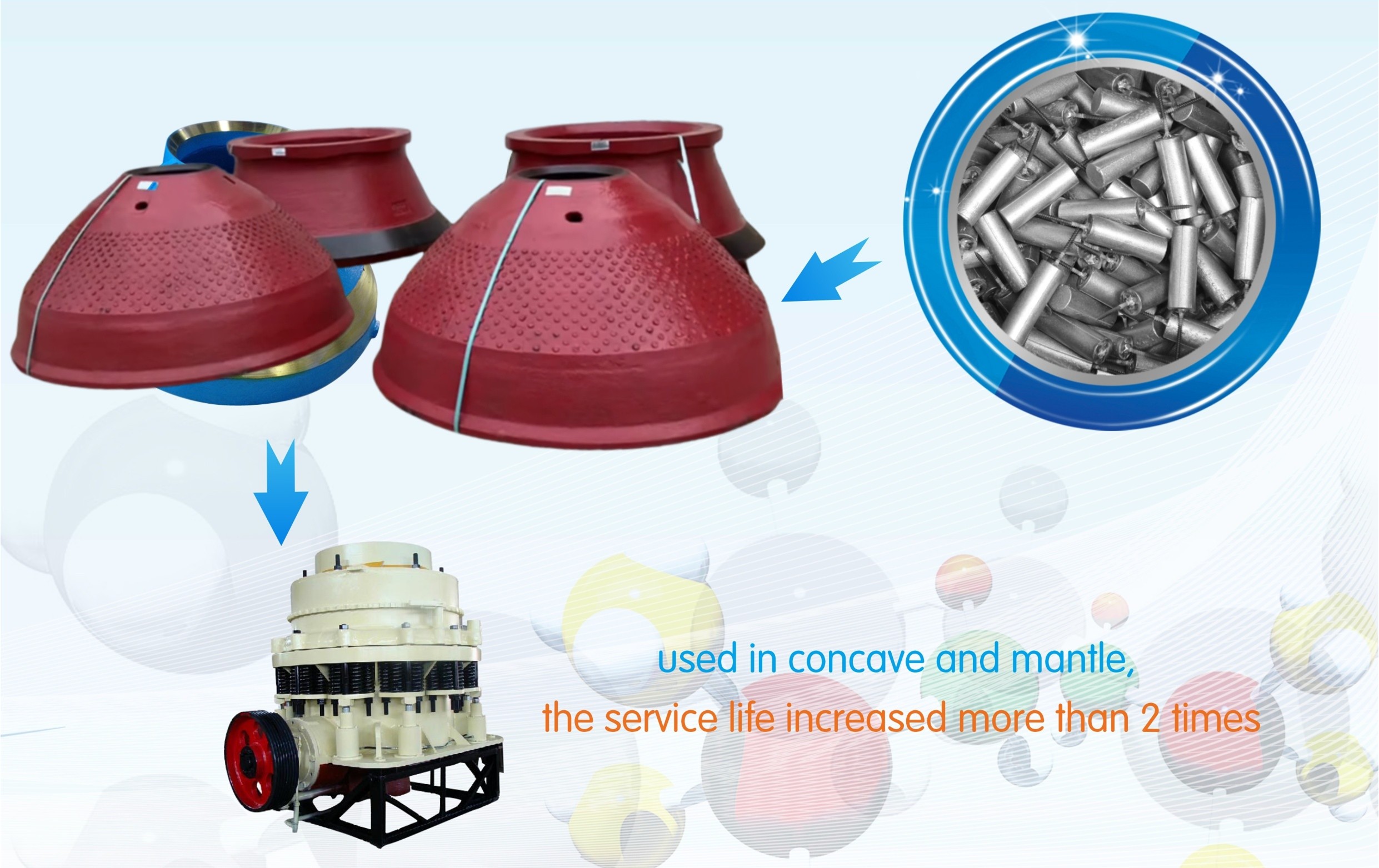

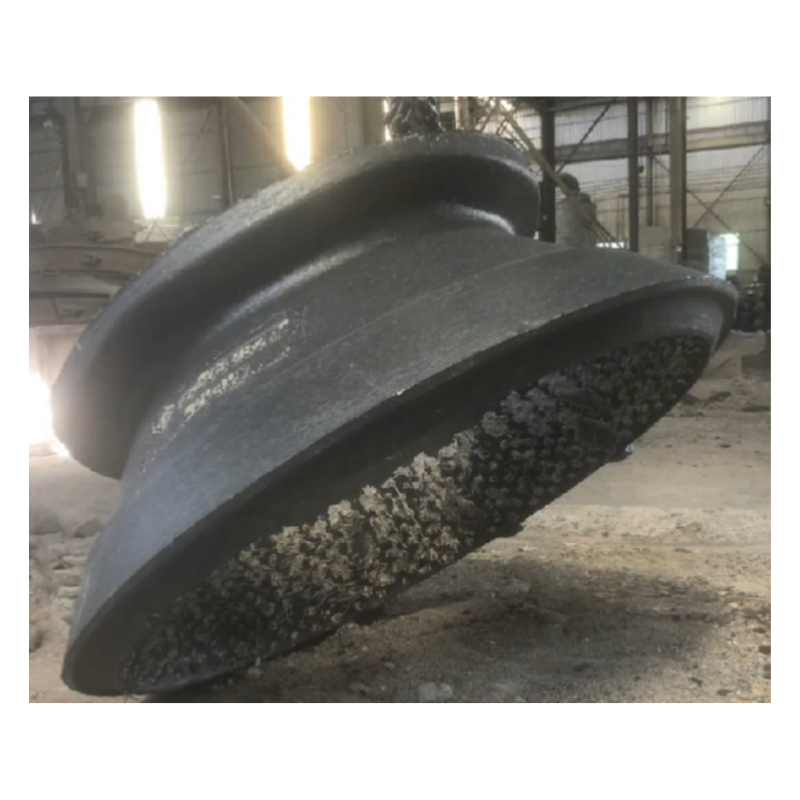

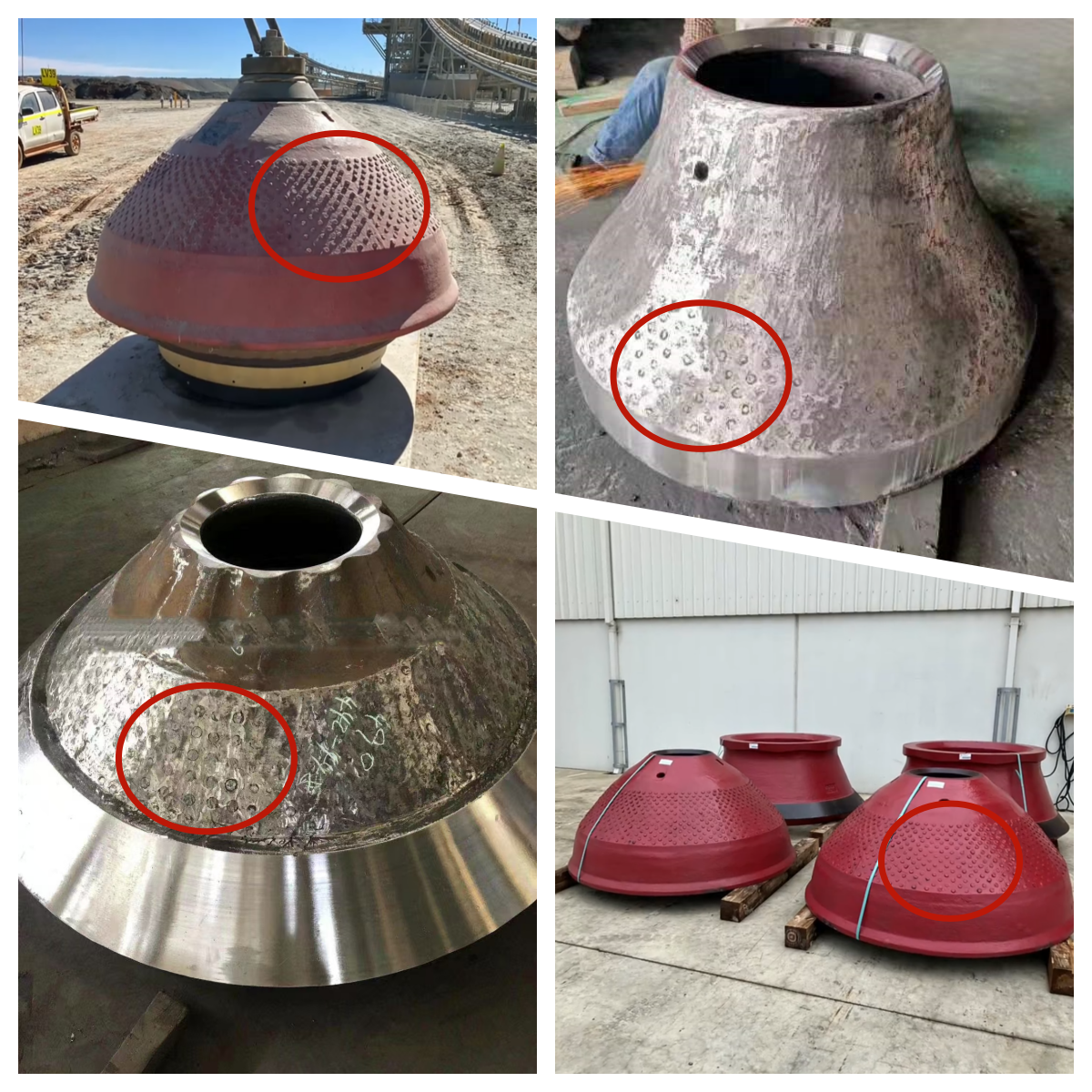

Steel bonded ferro-tic insert titanium carbide cermet rods,used in concave and mantle,the service life increased more than 2 times. |  |
 |  |

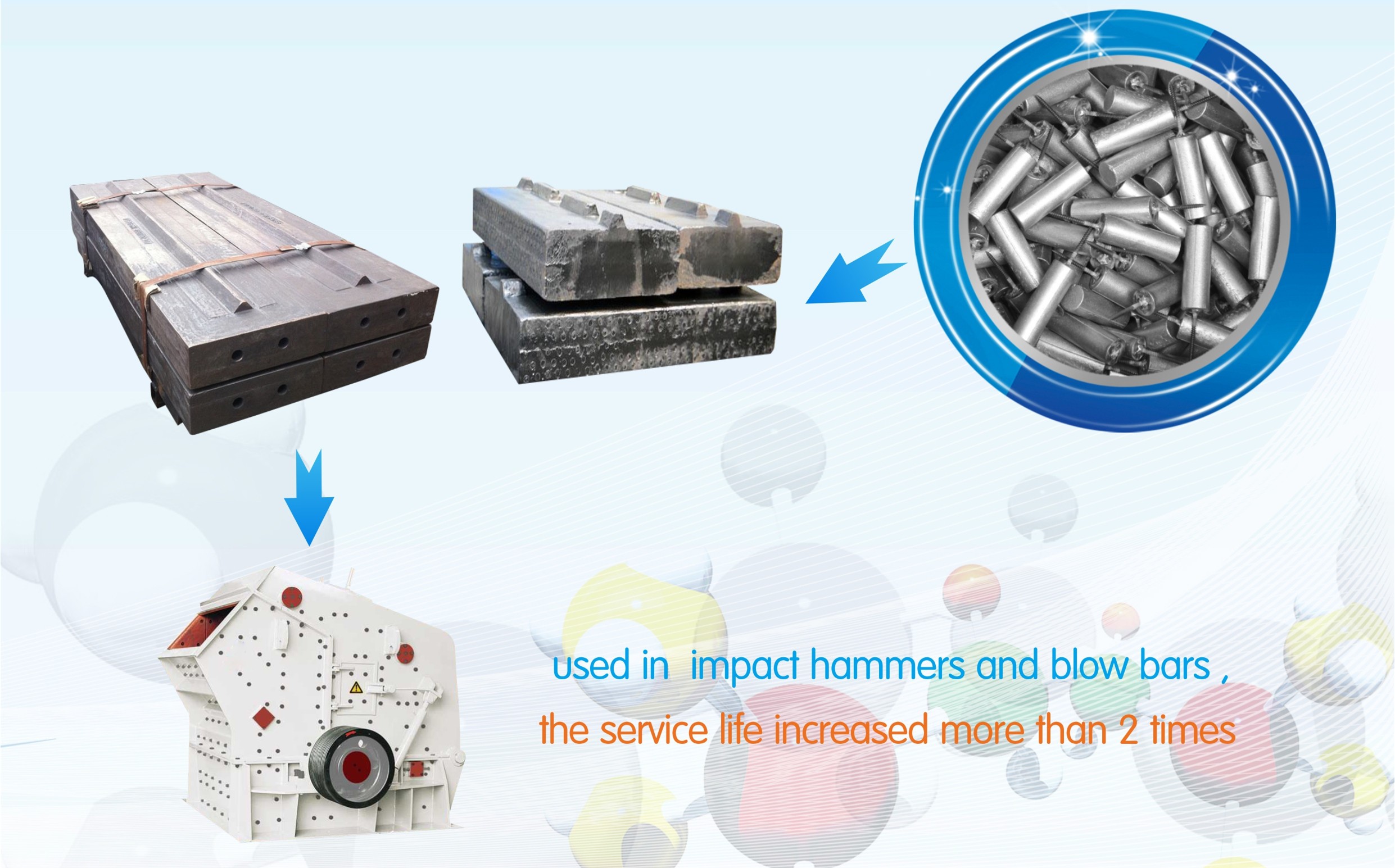

Product Applications 3：

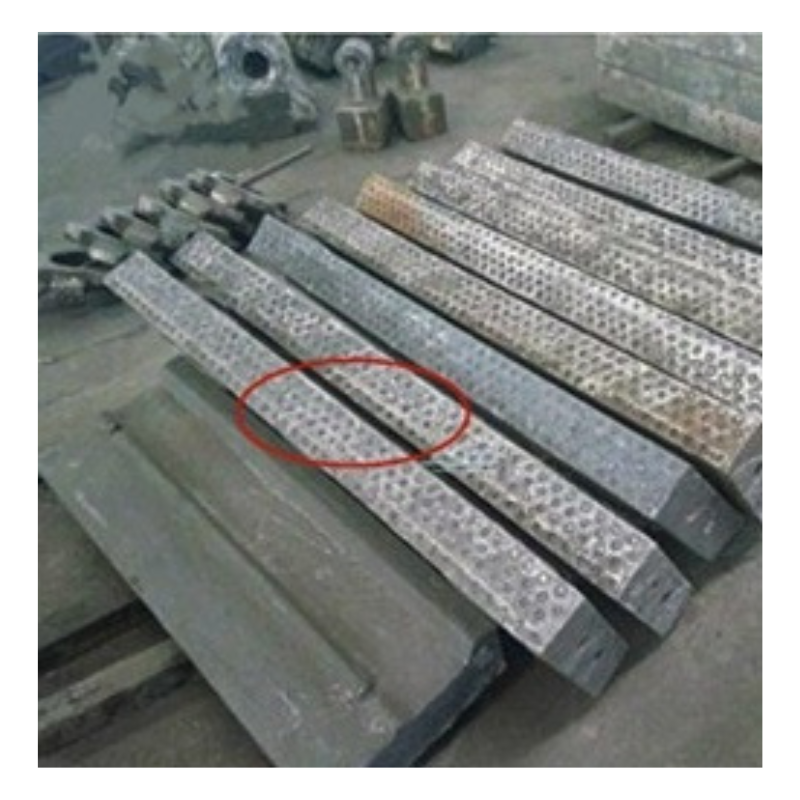

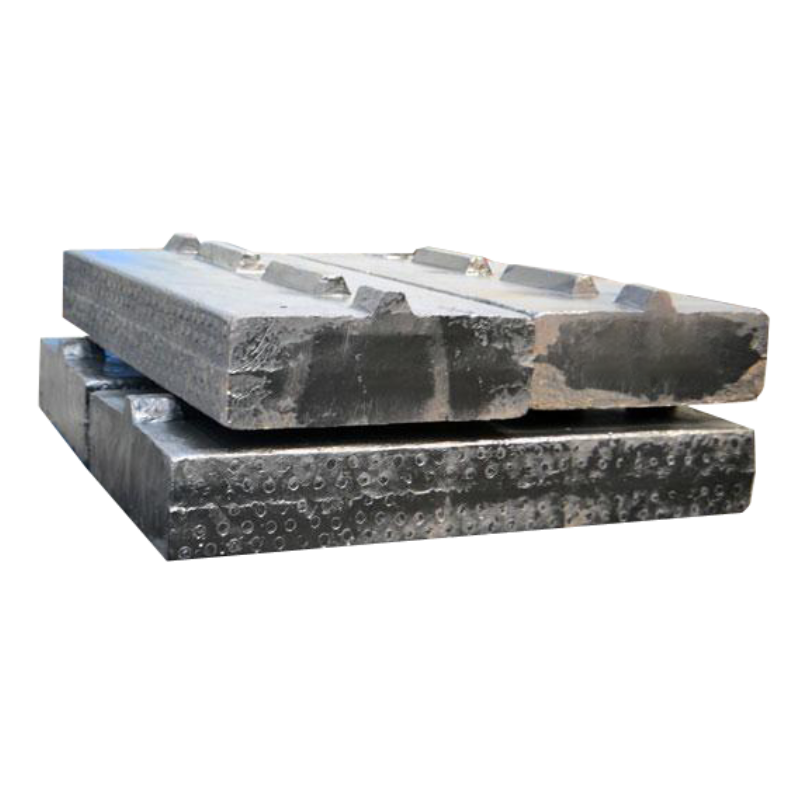

Steel bonded ferro-tic insert titanium carbide cermet rods,used in impact hammers and blow bars, the service life increased more than 2 times.
 |  |
 |  |

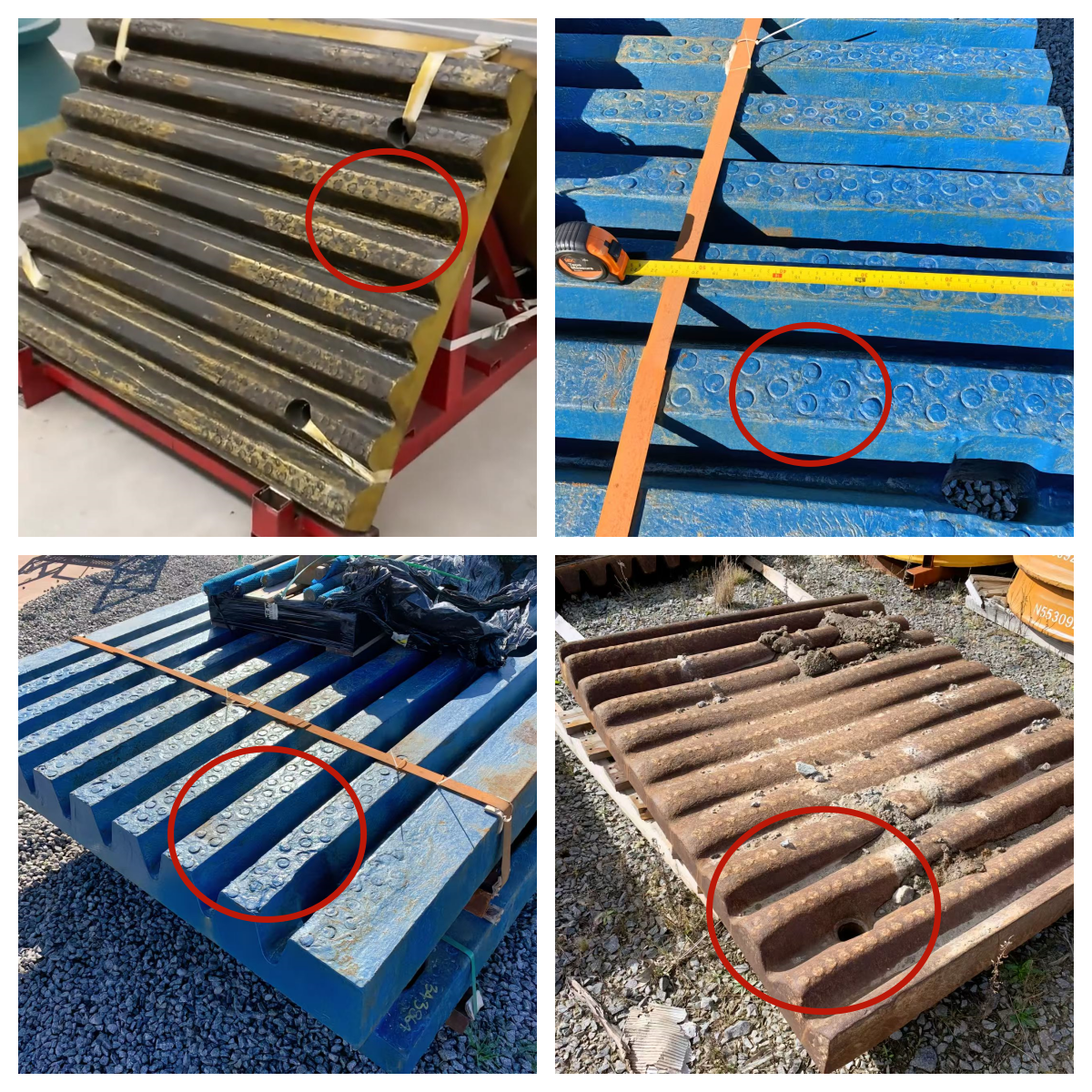

Product Applications 4：

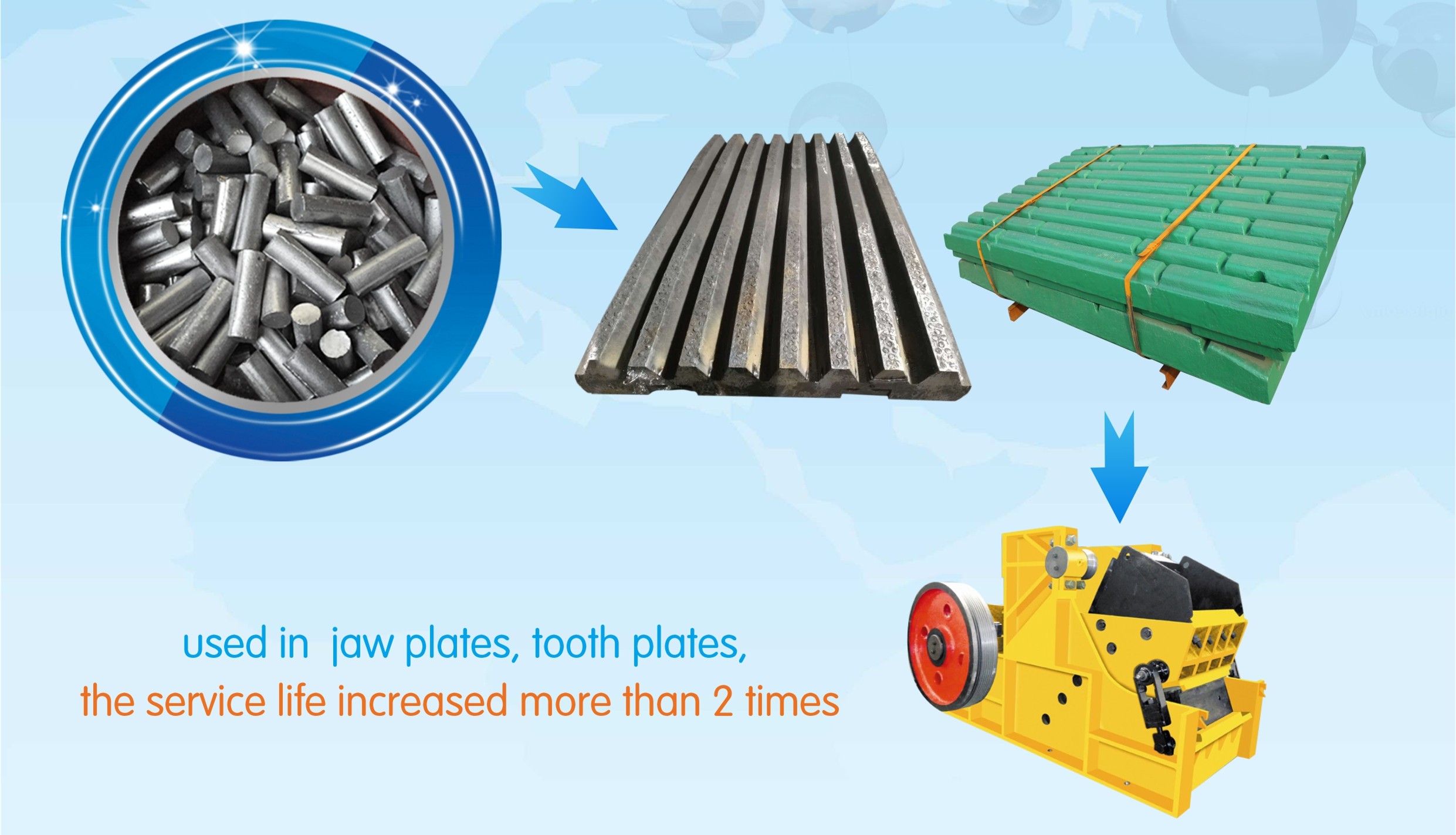

Steel bonded ferro-tic insert titanium carbide cermet rods,used in jaw plates, tooth plates,the service life increased more than 2 times.
 |  |
 |  |
